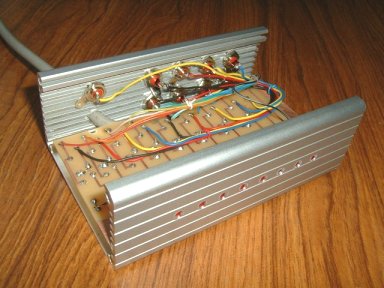

The LEDs and the 9 x phono sockets are all wired to the main board. All that
remains is to feed the parallel port cable through and solder the cores to the remaining pcb solder pads. |

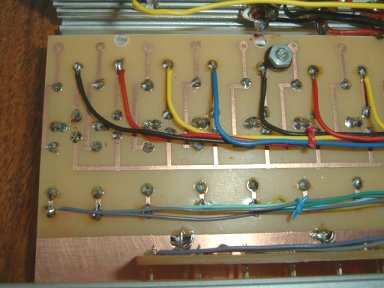

Internal view of the completed unit prior to final testing and closing the case. |
